Sheet Metal Bending: All You Need to Know

What is Sheet Metal Bending?

Sheet metal bending is when flat metal gets folded into shapes. It makes metal parts for cars, planes, and things in your home. Bending metal makes it strong and saves money.

When you bend sheet metal, you can make:

• Boxes
• Brackets
• Covers
• Parts for machines

Bending is better than cutting and joining metal parts together. It makes less waste and fewer spots that might break.

Ways to Bend Sheet Metal

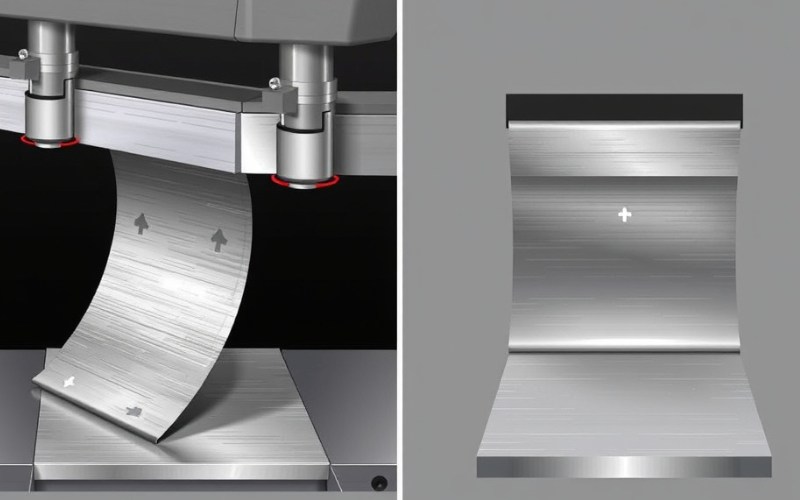

Air Bending

Air bending is when the metal only touches the tool at three points. The metal bends in the air between those points.

Good things about air bending:

• You can make many angles with the same tools
• It is fast
• It needs less force

Not so good things:

• It is not as exact as other ways
• The bend might spring back more

Bottom Bending

Bottom bending makes very exact bends. The metal gets pressed all the way to the bottom of the tool.

Good things:

• Makes same bends every time
• Very exact angles
• Less spring back

Not so good:

• Needs more force
• Each angle needs different tools

Roll Forming

Roll forming bends metal by passing it through many rollers.

It is good for:

• Long parts
• Making lots of the same part
• Things like gutters and ducts

Our cnc bending service can help with all these ways to bend metal.

Folding

Folding uses a clamp to hold the metal while a tool moves up to make the bend. Computers control the tools for perfect bends.

Hemming

Hemming folds the edge of the metal over itself. This makes the edge:

• Safe (not sharp)
• Stiff
• Nice looking

Things to Think About When Bending

Bend Radius Rules

The bend radius is how tight the bend is. If you make it too tight, the metal might crack.

For most metals:

• Use bend radius = 1x material thickness for mild steel
• Use bend radius = 0.5x thickness for aluminum 5052
• Use bend radius = 1x thickness for stainless steel 304

Always bend across the grain of the metal, not with it. This makes the bend 30% stronger.

Spring Back

Metal wants to go back to its old shape after bending. This is called spring back.

To fix spring back:

• Over-bend the metal a little
• Use K-factor math to figure out how much to over-bend
• Make sure the bend is tight enough

If you don’t fix spring back, 37% of sheet metal parts will have problems.

Flange Length

The flange is the part that sticks out after a bend. Make sure it is:

• At least 2x material thickness + bend radius
• Not too short or the tools won’t work right
• Not too close to other bends

Holes Near Bends

Keep holes away from bends or they might get squished or tear.

The safe distance is:

• At least 2x material thickness + bend radius from the bend

Best Materials for Bending

Aluminum

Aluminum is light and easy to bend. But it can crack if you bend it too tight.

• Needs bigger bend radius than steel
• Good for parts that need to be light
• Can be bent many times without breaking
• Our aluminum cnc machining service works well with this metal

Stainless Steel

Stainless steel is strong and does not rust.

• Gets harder when you bend it
• Needs more force to bend than mild steel
• Good for food and medical parts

Galvanized Steel

Galvanized steel has a zinc coating to stop rust.

• The coating might crack at tight bends
• Tools need to be clean so they don’t scratch the coating
• Good for outdoor parts

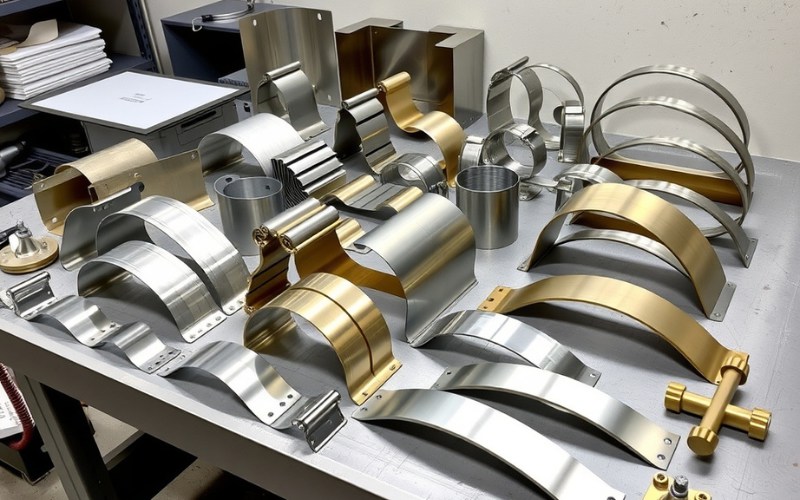

Copper and Brass

Copper and brass are soft and easy to bend.

• Need polished tools so they don’t get scratched
• Good for electrical parts
• Make very tight bends without cracking

Tools for Bending

Press Brakes

Press brakes are big machines that bend sheet metal. They can be:

• Hydraulic: Strong but slower
• Electric: Fast and uses less power

Modern press brakes have computers that control them for perfect bends every time.

CNC Backgauges

These are movable stops that hold the metal in the right place. They move by computer control for exact positioning.

Laser-Assisted Bending

This uses lasers to heat the metal where it will bend. This helps with:

• Very thick metal
• Strong metals that are hard to bend
• Less spring back

A car maker used laser-assisted bending to reduce springback by 22%.

Software

Computer programs help design parts and show how they will bend before making them. This saves time and money.

Common Problems and Fixes

Cracked Bends

If your bends are cracking:

• Make the bend radius bigger
• Bend across the grain
• Use softer metal
• Heat the metal before bending

Warped Parts

If your parts get warped:

• Check if the tools are worn out
• Make sure the pressure is even
• Use support for big parts

Wrong Angles

If your angles are not right:

• Check for spring back
• Make sure the tools are right for the job
• See if the metal thickness is what you expect

Where Bent Sheet Metal is Used

Cars

Cars use bent sheet metal for:

• Body panels
• Brackets
• Frames
• Exhaust parts

Our automotive cnc machining service makes many of these parts.

Electronics

Electronics use bent sheet metal for:

• Cases
• Heat sinks
• Brackets
• Shields

Buildings

Buildings use bent sheet metal for:

• Roof panels
• Air ducts
• Gutters
• Wall panels

Planes

Planes use bent sheet metal for:

• Skin panels
• Brackets
• Interior parts
• Control surfaces

Sheet Metal Bending Costs

Tight bends (less than 0.3mm radius) can cost 15-20% more because:

• They need special tools
• Tools wear out faster
• They need more skill

To save money:

• Use standard bend radii when you can
• Design parts with fewer bends
• Make lots of the same part

Sheet Metal Bending Chart

Questions People Ask

Wrap-Up

Sheet metal bending is a great way to make strong parts with less waste. The key things to remember are:

1. Pick the right bend radius for your metal
2. Watch out for spring back
3. Keep holes and cuts away from bends
4. Bend across the grain when you can
5. Use the right tools for your job

With good design and the right methods, you can make great bent sheet metal parts.

Want to know more about bending sheet metal? Our cnc sheet metal bending service can help with your project.
