All About the Stress-Strain Curve

What You Need to Know About Stress-Strain Curves

Have you ever seen a bridge sway in strong winds and wondered if it’s safe? Or watched as engineers test how much weight a metal beam can hold? Behind these tests is a stress-strain curve – one of the most important tools in engineering. This curve tells us how materials behave under force, helping engineers pick the right materials for everything from airplane wings to medical devices.

Whether you’re a student learning materials science or an engineer choosing between steel and titanium, understanding stress-strain curves will help you make better decisions about materials. Let’s explore what these curves mean and why they matter so much.

Stress-Strain Curve

Basic Definitions: What Are Stress and Strain?

Before diving into the curve itself, let’s understand what the words stress and strain actually mean:

Stress

Stress is the force per unit area acting on a material. Think of it as how hard you’re pushing or pulling on something, spread over its surface area. We measure it in units like megapascals (MPa).

The basic formula is:

  • Stress (σ) = Force/Area

There are three main types of stress:

  • Tensile stress – pulling forces
  • Compressive stress – pushing forces
  • Shear stress – sliding forces

Strain

Strain measures how much a material has changed shape compared to its original size. It’s the deformation that happens when force is applied.

The formula is:

  • Strain (ε) = Change in Length/Original Length

Strain has no units because it’s a ratio (like a percentage).

Engineering vs. True Stress-Strain

When testing materials, engineers use two different ways to plot the data:

  • Engineering stress-strain: Uses the original dimensions of the test piece (easier to calculate but less accurate for large deformations)
  • True stress-strain: Accounts for the changing dimensions as the material stretches or compresses (more complex but more accurate)

Most basic curves you’ll see are engineering stress-strain curves. Advanced research and design might use true stress-strain data, which becomes important when materials undergo large shape changes.

Key Components of the Stress-Strain Curve

The stress-strain curve has several important regions that tell us how a material behaves under force. Let’s look at each part:

1. Elastic Region

This is the first part of the curve, where:

  • The line is straight (linear)
  • If you remove the force, the material returns to its original shape (like a rubber band)
  • Hooke’s Law applies: stress is directly proportional to strain
  • The slope of this line is called Young’s Modulus (E), which measures stiffness

A steeper slope means a stiffer material. For example, steel has a Young’s Modulus around 200 GPa, while rubber’s is only 0.01-0.1 GPa. This explains why steel hardly bends when you push on it, but rubber stretches easily.

2. Yield Point

This critical point marks where the material stops behaving elastically and begins to deform permanently. The stress at this point is called yield strength.

  • Before the yield point: material returns to original shape when force is removed
  • After the yield point: material stays deformed even after force is removed

Some materials like mild steel show a clear “pop” or drop at the yield point, while others like aluminum show a gradual change. For materials without a clear yield point, engineers use the 0.2% offset method to find it.

3. Plastic Region

After yielding, the material enters the plastic region where:

  • Permanent deformation occurs
  • The material may undergo strain hardening (getting stronger as it deforms)
  • Eventually reaches the ultimate tensile strength (UTS), the maximum stress it can handle
  • After UTS, necking begins where the material thins in one area

4. Fracture Point

The final point on the curve is where the material completely breaks. The strain at this point tells us about the material’s ductility – how much it can stretch before breaking.

Practical Applications of Stress-Strain Curves

Understanding stress-strain curves isn’t just academic – these curves guide real-world decisions every day:

Material Selection

Engineers use stress-strain data to pick materials for specific needs:

  • Need something that won’t bend? Look for high Young’s Modulus
  • Need something that can take high force without breaking? Look for high yield strength
  • Need something that can stretch a lot? Look for high ductility

For example, glass-reinforced polymers have higher stiffness than regular plastics, making them better for load-bearing parts.

Quality Control

Manufacturers test samples from production batches to verify they meet engineering standards:

  • ASTM and ISO standards set minimum properties for different materials
  • Stress-strain testing catches defects from improper heat treatment or manufacturing issues
  • Aerospace and medical industries require strict material certification

Failure Analysis

When parts break unexpectedly, engineers analyze the stress-strain behavior to find out why:

  • Was the material too brittle?
  • Did it yield at a lower stress than expected?
  • Was there an unexpected load type?

Engineering Design

When designing structures, engineers use stress-strain data to:

  • Calculate how much a bridge might deflect under load
  • Determine if a medical implant will deform under body weight
  • Predict if a metal part will spring back after forming

How to Generate a Stress-Strain Curve

Creating a stress-strain curve requires specialized equipment and careful testing:

Tensile Testing

The most common method uses a Universal Testing Machine (UTM) that:

  • Grips the test specimen at both ends
  • Pulls it at a controlled rate
  • Measures force with load cells
  • Measures deformation with extensometers
  • Records data to plot the curve

Standards

Tests follow specific standards to ensure consistent results:

  • ASTM E8: Standard for testing metals in the US
  • ISO 6892: International standard for tensile testing
  • These specify sample shape, size, and test conditions

Interpreting Results

From the test data, engineers calculate:

  • Young’s Modulus (E): Slope of the elastic region
  • Yield Strength: Stress at the yield point
  • Ultimate Tensile Strength (UTS): Maximum stress value
  • Ductility: Total strain before fracture

Advanced Concepts in Stress-Strain Analysis

For those looking deeper into material behavior, several advanced concepts come into play:

True Stress-Strain Curve

As mentioned earlier, the true stress-strain curve accounts for the changing cross-section during testing. This becomes important when:

  • Large deformations occur
  • You need accurate data for computer simulations
  • You’re working with materials that neck significantly

Anisotropy

Many materials show different properties depending on direction:

  • Rolled sheet metal is stronger in one direction
  • Wood is stronger along the grain than across it
  • Carbon fiber composites can be engineered with directional properties
  • Testing must account for these differences

Strain Rate Effects

How quickly you apply force can change material behavior:

  • Fast loading (high strain rate) can make some materials stronger but less ductile
  • Slow loading gives different results
  • This is why car crash tests are different from static load tests

Computational Use

Modern engineering relies on computer simulations that use stress-strain data:

  • Finite Element Analysis (FEA) predicts how parts will behave
  • Simulations help optimize designs before physical testing
  • Accurate stress-strain curves are essential for good results

Material Comparison Based on Stress-Strain Behavior

Different materials show very different stress-strain patterns. This table shows key properties of common materials:

MaterialYield Strength (MPa)Ultimate Tensile Strength (MPa)Young’s Modulus (GPa)Ductility (% Elongation)Key Behavior
Mild Steel25040020020-30%Distinct yield point, strain hardening
Aluminum 60612402906912-16%No sharp yield point, gradual plasticity
GlassN/A5070<1%Brittle fracture (no plastic region)
RubberN/A150.01–0.1>500%Hyperelastic behavior, large elastic strain

This table shows why material selection matters so much. For example:

  • If you need something that can bend without breaking, mild steel with its higher ductility might be better than glass
  • If weight matters, aluminum might be preferred over steel despite lower stiffness
  • If you need something that can stretch a lot, rubber is clearly superior

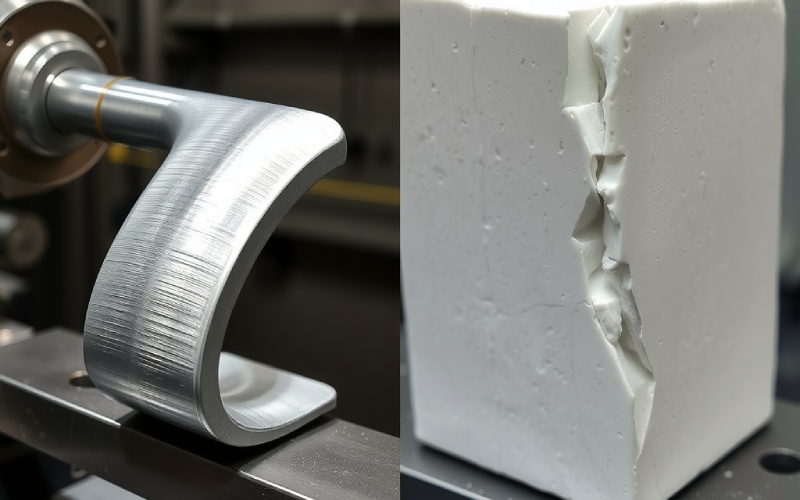

material samples under stress testing

Industry Applications of Stress-Strain Data

Different industries focus on different aspects of the stress-strain curve:

IndustryCritical ParameterTypical Value RangesExample Use Case
ConstructionYield Strength250–500 MPa (steel)Beam design for load-bearing structures
AerospaceYoung’s Modulus70–400 GPa (aluminum, titanium)Wing flex resistance
BiomedicalDuctility (% Elongation)10–50% (surgical alloys)Stent durability
AutomotiveUltimate Tensile Strength300–600 MPa (high-strength steel)Crashworthiness analysis

For example, in aerospace machining, materials must maintain their properties under extreme temperature changes and cyclic loading.

Frequently Asked Questions About Stress-Strain Curves

What’s the difference between engineering and true stress?

Engineering stress uses the original cross-sectional area in calculations, while true stress accounts for the changing area as the material deforms. True stress is higher than engineering stress during necking because the cross-section gets smaller.

Why do some materials lack a clear yield point?

Materials like aluminum, plastics, and many non-ferrous metals show a gradual transition from elastic to plastic behavior. For these materials, engineers use the 0.2% offset method to define yield strength.

Can stress-strain curves predict fatigue life?

Not directly. Stress-strain curves come from static tests, while fatigue involves repeated loading. However, materials with higher ductility often show better fatigue resistance. Additional cyclic tests are needed for fatigue life prediction.

How does temperature affect the stress-strain curve?

Temperature has a major effect:
Higher temperatures typically reduce yield strength and Young’s Modulus
Materials become more ductile at higher temperatures
Some materials become brittle at low temperatures
This is why materials testing at operating temperature is important

Conclusion

The stress-strain curve is much more than a simple graph – it’s a powerful tool that helps engineers understand how materials behave under force. From choosing the right alloy for an aircraft component to designing safer buildings, these curves guide countless engineering decisions.

Key takeaways include:

  • The elastic region shows how much a material can bend and return to its original shape
  • The yield point marks where permanent deformation begins
  • The plastic region and ultimate tensile strength show how tough a material is
  • The fracture point reveals ductility and total energy absorption

Next time you see a suspension bridge swaying in the wind or watch a plastic bottle bounce instead of breaking when dropped, remember that engineers carefully selected those materials based on their stress-strain behavior.

For more information on materials and manufacturing processes, explore resources on material testing standards, or learn about how modern manufacturing techniques like CNC machining utilize material property data to create high-performance parts.
