How to Calculate Young’s Modulus: A Complete Guide

When building bridges, designing aircraft parts, or creating new materials, engineers need to know how stiff a material is. This is where Young’s modulus comes in. It tells us how much a material will stretch when pulled or squeezed. In this guide, we’ll show you exactly how to calculate Young’s modulus with simple steps anyone can follow.

What is Young’s Modulus?

Young’s modulus (also called elastic modulus) is a number that tells us how a material resists being stretched. Think of a rubber band versus a steel rod. The rubber band stretches easily, so it has a low Young’s modulus. The steel rod barely stretches at all, so it has a high Young’s modulus.

Young’s modulus is important in many fields like bridge construction, aerospace design, and manufacturing. It helps engineers pick the right materials for the job.

The Formula for Young’s Modulus

Young’s modulus is calculated using this simple formula:

E = σ/ε

Where:

• E is Young’s modulus
• σ (sigma) is the stress
• ε (epsilon) is the strain

Let’s break down these parts:

Stress (σ)

Stress is the force per unit area:

σ = F/A

Where:

• F is the force applied (in Newtons)
• A is the cross-sectional area (in square meters)

Strain (ε)

Strain is the change in length divided by the original length:

ε = ΔL/L₀

Where:

• ΔL is the change in length
• L₀ is the original length

Units

Young’s modulus is measured in Pascals (Pa) or often Gigapascals (GPa). In the US, you might also see it in pounds per square inch (psi).

Step-by-Step Calculation of Young’s Modulus

Follow these steps to calculate Young’s modulus for any material:

1. Measure the initial dimensions
   • Measure the original length (L₀)
   • Measure the cross-sectional area (A)
2. Apply a force
   • Use a tensile testing machine to pull on the material
   • Make sure the force is axial (straight-line pull)
3. Record the change in length
   • Measure how much the material stretched (ΔL)
   • Use tools like extensometers for precise measurements
4. Calculate stress
   • Divide the force by the cross-sectional area
   • σ = F/A
5. Calculate strain
   • Divide the change in length by the original length
   • ε = ΔL/L₀
6. Calculate Young’s modulus
   • Divide stress by strain
   • E = σ/ε

Example Calculation

Let’s work through a real example with a steel rod:

Initial measurements:

• Original length (L₀) = 2 meters
• Cross-sectional area (A) = 5 × 10⁻⁴ m²
• Applied force (F) = 50,000 Newtons
• Measured elongation (ΔL) = 0.0025 meters

Step 1: Calculate stress (σ)

σ = F/A = 50,000 N / (5 × 10⁻⁴ m²) = 100,000,000 Pa = 100 MPa

Step 2: Calculate strain (ε)

ε = ΔL/L₀ = 0.0025 m / 2 m = 0.00125 (or 0.125%)

Step 3: Calculate Young’s modulus (E)

E = σ/ε = 100 MPa / 0.00125 = 80,000 MPa = 80 GPa

This result (80 GPa) is lower than the typical value for steel (200 GPa). This might be because we measured beyond the elastic limit, which causes errors. We’ll discuss this more later.

Tools and Equipment for Measuring Young’s Modulus

To get accurate measurements, you need the right tools:

Equipment

• Tensile testing machine: Applies controlled force
• Extensometer: Measures tiny changes in length very precisely
• Vernier calipers: Measures dimensions accurately
• Stress-strain curve generators: Software that plots the results

Standards

When measuring Young’s modulus, follow these standards for best results:

• ASTM E111
• ISO 6892-1

These standards ensure your measurements will be accepted by other engineers.

Material-Specific Young’s Modulus Values

Below is a table showing Young’s modulus for common materials:

These values help engineers compare materials quickly. For precision parts machining, knowing the exact Young’s modulus is crucial to predict how parts will perform.

Common Mistakes When Calculating Young’s Modulus

Watch out for these common errors:

1. Measuring Beyond the Elastic Limit

Problem: If you stretch a material too much, it won’t spring back completely. This gives false readings.

Solution: Use only the linear portion of the stress-strain curve.

2. Incorrect Cross-Sectional Area

Problem: If you measure the area wrong, your stress calculation will be off.

Solution: Use precise tools like Vernier calipers and take multiple measurements.

3. Ignoring Temperature Effects

Problem: Materials get stiffer when cold and softer when hot.

Solution: Control the temperature during testing or note it in your results.

4. Unit Mixups

Problem: Mixing imperial and metric units (like psi and Pa).

Solution: Convert all units to one system before calculating.

Real-World Applications of Young’s Modulus

Young’s modulus is used in many fields:

Aerospace Industry

Aircraft designers need materials with high stiffness but low weight. This balance is critical for aerospace machined components[^3] that must be both light and strong.

Architecture

Buildings and bridges need materials that won’t bend too much under load. Engineers use Young’s modulus to calculate how much beams will deflect.

Sports Equipment

From golf clubs to vaulting poles, sports equipment designers use Young’s modulus to create gear that flexes just the right amount.

Manufacturing

In CNC machining[^4], knowing a material’s Young’s modulus helps predict how it will behave during cutting and forming operations.

Frequently Asked Questions

Lab Procedure for Measuring Young’s Modulus

Here’s a practical lab procedure for measuring Young’s modulus:

1. Prepare your sample: Cut the material to a standard size
2. Mark measurement points: Put reference marks on the sample
3. Set up the testing machine: Secure the sample in the grips
4. Attach measuring devices: Connect extensometers to measure stretch
5. Apply force gradually: Increase force in small steps
6. Record data: Note force and elongation at each step

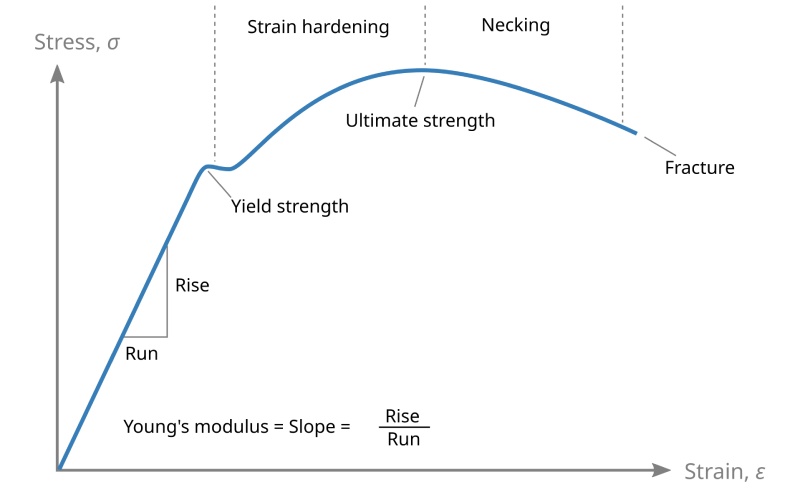

7. Plot stress vs. strain: Create a graph of your results
8. Find the linear region: Identify the straight part of the graph
9. Calculate the slope: The slope of the straight line is Young’s modulus

Conclusion

Calculating Young’s modulus is a fundamental skill for engineers and materials scientists. By measuring how much a material stretches under load, we can predict how it will behave in real-world applications.

Remember these key points:

• Young’s modulus (E) equals stress divided by strain
• Only use measurements from the elastic region
• Different materials have vastly different modulus values
• Temperature and other factors can affect your results

Whether you’re designing a bridge, selecting materials for precision CNC machining, or just curious about material properties, understanding Young’s modulus gives you powerful insight into how materials behave under stress.
